Optical characterization of materials at different scales

The CARNOT platform brings together numerous thermal and optical metrology devices for the characterization of complex materials and systems (liquids, heterogeneous or semi-transparent media, etc.). It is led by a team of teacher-researchers and engineers whose expertise applies to thermal characterization in the broadest sense, covering areas ranging from the determination of thermo-physical properties of materials to the characterization of a complex industrial system. This part of the platform focuses its activity and expertise around spectrometry and microscopy equipment or innovative optical benches for multi-scale characterization of the physico-chemical and photo-thermal properties of materials.

Specificities

  • Diffuse reflection and diffuse transmission of materials by integrating sphere (Optical properties UV – Visible and IR, from 4K to 2000K)
  • Direct (600K to 2000K) or indirect (300K to 800K) spectral emissivity
  • Radiation characterization, Physico-chemical properties of materials
  • Surface IR characterization (ATR)
  • Thermal conductivity at the nanometric and micrometric scale
  • Thermal contact resistance, topography, interaction forces, roughness, local temperature
  • Photo-thermal properties, Thermal conductivity, Solid-Liquid interface, Molecular dynamics, Phase transition, Chemical species monitoring and quantification.

Application sectors

  • Materials for the building industry
  • Materials for aeronautics
  • Nanostructured materials, (thin films, nanowires, nanotubes), semiconductor materials, porous and nanoporous materials

Keywords

  • Vibrational spectroscopy
  • Thermal microscopy
  • Nano conductivity
  • Spectral emissivity
  • High temperatures
  • Nanostructured materials
  • Photo-thermal Property
  • Vibrational Spectrometry, FTIR Spectroscopy, Absorption Spectroscopy, Scattering IR Spectroscopy
  • Atomic Force Microscopy, Scanning Thermal Microscopy (DC and 3ω), Frequency Laser Thermo-reflectance
  • Raman Spectroscopy, Raman Microscopy, Photo-thermal Characterization
  • Innovative optical metrology and experimental optical benches etc.
Banc optique de Thermoreflectance fréquentielle

Frequency Thermoreflectance Optical Bench

Sphère intégrante pour la mesure des propriétés optiques diffuses dans l’Infrarouge
Microscope à Force Atomique permettant des mesures sous vide

Integrating sphere for the measurement of diffuse optical properties in the Infrared range

Atomic Force Microscope for vacuum measurements

  • Bruker Vertex 80V Spectrometer
  • Bruker Tensor Spectrometer etc.
  • AFM SThM XE100 vacuum modified
  • Laser Thermo-reflectance bench, Nd-Yag laser, Ti-Sa laser
  • High temperature emissivity bench, laser CO₂
  • Raman Microscope

Thermo-Reflectance Bench in the Frequency Domain

The laser pump-probe thermo-reflectance, continuous or pulsed, is an optical thermometry method allowing to measure the temperature of a material via its surface reflectivity variations. It allows the study of thermal properties in materials with low dimensionality (characterization of thin layers between 100nm-10um) as well as the study of heat transport phenomena in non-Fourier regimes thanks to the wide range of accessible modulation frequencies.

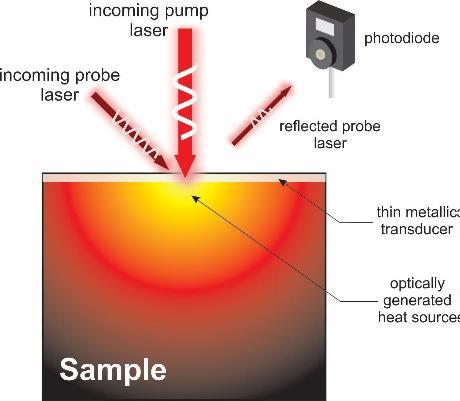

Principe de la thermoréflectance laser

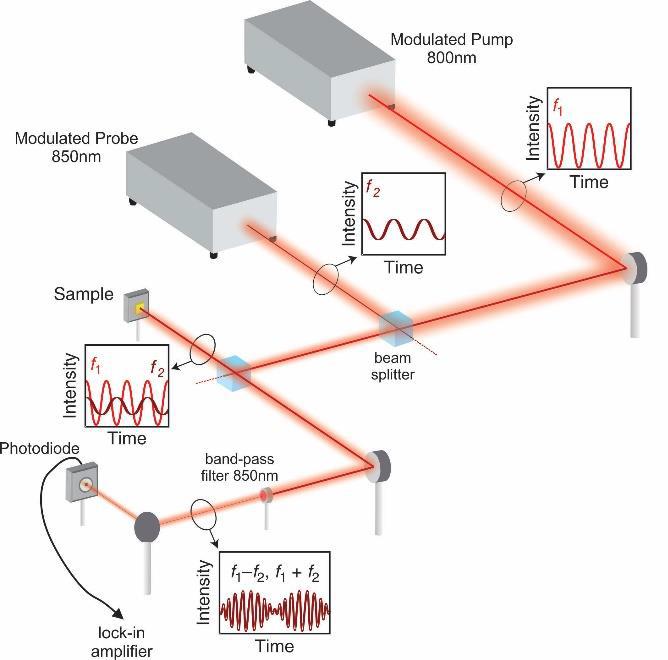

schéma du banc optique developpé au LEMTA

Principle of laser thermo-reflectance and diagram of the optical bench developed at LEMTA

Angular Diffusion Bench in coherent white light for the characterization of soot

Because of their impact on health and climate, a good knowledge of the characteristics of soot (quantity, size distribution) is necessary. For this purpose, an optical metrology instrument based on the use of a Supercontinuum laser (white light) has been designed. The particularity of this device is based on simultaneous measurements of extinction and diffusion.

Vue du banc optique
vue de la cellule multi-passages

Photo View of the optical bench

View of the multi-pass cellges
